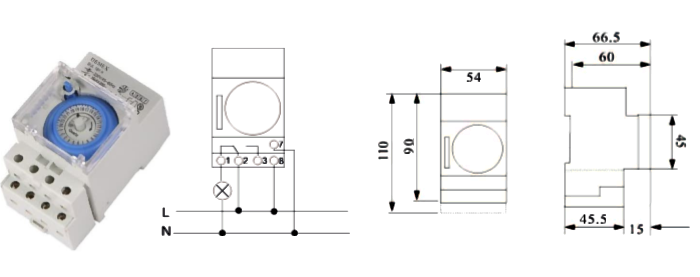

DEMEX 24 HR TIME SWITCH
Function
- Analogue time switch, 1 channel
- Daily/24 hours program
- 48 switching segments
- DIN rail installation
- Synchronised with mains
- Shortest switching time: 30 Minutes
- With power reserve 150 hours
Technical data
- Voltage rating: 110-230VAC 50/60Hz
- Voltage limit: 100-240 VAC
- Width: 3 Modules
- Installation type: DIN-rail
- Program:Daily (24hours) Program
- Power reserve: 150 hours
- Max: switching capacity at 250 VAC, cosф = 1: 16A
- Max. switching capacity at 250VAC, cosф = 0.6: 4A
- Shortest switching time: 30 minutes
- Programmable every: 30 minutes
- Time accuracy: ≤ ± 1s/ day (Quartz)
- Power consumption: 1 VA
- Ambient temperature: -20°C ~ +55°C
- Manual switch with 2 positions: AUTO/ Permanent OFF

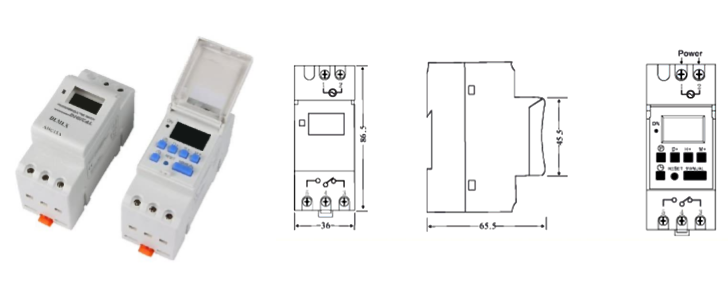

AHC-15 DIGITAL TIME SWITCH
Function
- DIN RAIL installation
- LCD display, Day/week program
- 18 ON/OFF programs
- 18 times pulse programs
- Lithium battery power reserve: 3 years
- Auto time should be error correction ±30 sec, weekly
Technical data
- Voltage rating: AC220V 50/601-Iz
- Voltage limit: AC 180V~250V
- Hysteresis: ≤ 2sec/day (25°C)
- On/ off operation: 18 on & 18 off, 18 times pulse
- Power consumption: 5VA (max)
- Display: LCD
- Service life: Mechanically l07 ; Electrically 105
- Minimum interval: minute (pulse/ cycle l s)
- Weight: approx 150g
- Time basis: quartz
- Ambient humidity: 35 ~ 85%rh
- Ambient temperature: -10 ~ +-40°C
- When the battery reserve is in use, the battery mark on the LCD display will be indicated. When in use in power mode, the battery mark will not be indicated.
- Count down: 1 sec-99 min 59 sec
- Pulse: 1 sec-59min 59 sec
- Switching power: 16A 250VAC(cosф=1); 10A 250VAC (cosф=0. 6)
Incandescent lamp load: 2300W
Halogen lamp load: 2300W
Fluorescent lamps: Non compensated, series compensated; 1000VA, Parallel compensated 400VA (42µf)
- Switching contact: 1 changeover switch
- Power reserve: 3 years (lithium battery)
*Product Specifications Subject To Changes Without Prior Notice
