DMK047 15W -150W

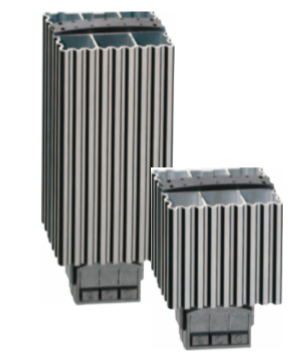

These heaters are used in enclosures where damage from condensation must be prevented, or where the temperature may not fall below a minimum value. The aluminium profile heater body design has a chimney effect and distributes the heat evenly. The pressure clamp connectors save time and simplify installation.
| Technical Data | |
|---|---|
| Operating voltage | 120-240V AC / DC *( min .110 V,max .265 V ) |
| Heating element | PTC resistor , self regulating and temperature limiting |
| Heater body | Extruded aluminium profile , anodised |
| Connection | 3 pressure clamps for stranded wire 0.5-1.5mm 2 ( with wire end ferrule ) and rigid wire 0.5-1.5mm |
| Connection casing | Plastic according to UL94 V -0, black |
| Mounting | Clip for 35mm DIN rail, EN 60715 |
| Installation position | Vertical |
| Operating / Storage temperature | - 20 to +70℃(-4 to +158° F ) |
| Protection type/Protection class | IP54 / I ( earthed ) |
| Heating capacity | Inrush current max. | Length (L) | Weight (approx.) |
|---|---|---|---|
| 10W | 1.5A | 65mm | 0.30kg |
| 30W | 3.0A | 65mm | 0.30kg |
| 55W | 3.5A | 140mm | 0.40kg |
| 80W | 4.0A | 140mm | 0.50kg |
| 100W | 4.5A | 140mm | 0.50kg |
| 150W | 9.0A | 220mm | 0.70kg |
*Product Specifications Subject To Changes Without Prior Notice
