| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| TB1503 |  |
 |
0.5 – 1.5 | 600V | 3 | 22 x 45.5 x 17 | ||||
| TB1504 |  |
 |
0.5 – 1.5 | 600V | 4 | 22 x 54 x 17 | ||||
| TB1506 |  |
 |
0.5 – 1.5 | 600V | 6 | 22 x 72 x 17 | ||||
| TB1512 |  |
 |
0.5 – 1.5 | 600V | 12 | 22 x 126 x 17 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| TB2503 |  |
 |
0.5 – 2.5 | 600V | 3 | 30 x 55.3 x 19.5 | ||||
| TB2504 |  |
 |
0.5 – 2.5 | 600V | 4 | 30 x 67.5 x 19.5 | ||||

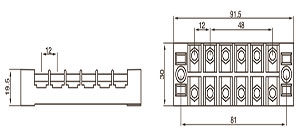

| TB2506 |  |
 |
0.5 – 2.5 | 600V | 6 | 30 x 91.5 x 19.5 | ||||
| TB2512 |  |
 |
0.5 – 2.5 | 600V | 12 | 30 x 162.9 x 19.5 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| TB3503 |  |
 |
0.5 – 4.0 | 600V | 3 | 30 x 55.3 x 19.5 | ||||
| TB3504 |  |
 |
0.5 – 4.0 | 600V | 4 | 30 x 67.5 x 19.5 | ||||
| TB3506 |  |
 |
0.5 – 4.0 | 600V | 6 | 30 x 91.5 x 19.5 | ||||
| TB3512 |  |
 |
0.5 – 4.0 | 600V | 12 | 30 x 162.9 x 19.5 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| TB4503 |  |
 |
0.5 – 4.0 | 600V | 3 | 37.8 x 69 x 23.5 | ||||
| TB4504 |  |
 |
0.5 – 4.0 | 600V | 4 | 37.8 x 86 x 23.5 | ||||
| TB4506 | |
|
0.5 – 4.0 | 600V | 6 | 37.8 x 119.5 x 21 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|

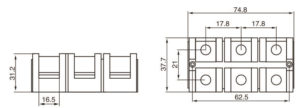

| TB603 |  |
 |
1.5 – 14.0 | 600V | 3 | 37.7 x 74.8 x 31.2 | ||||

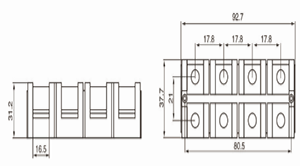

| TB604 |  |
 |
1.5 – 14.0 | 600V | 4 | 37.7 x 92.7 x 31.2 | ||||

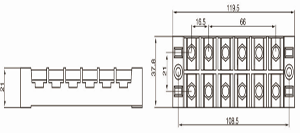

| TB606 |  |
 |
1.5 – 14.0 | 600V | 6 | 37.8 x 119.5 x 21 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|

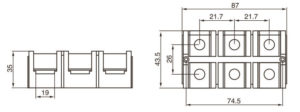

| TB1003 |  |
 |
2.5 – 16.0 | 600V | 3 | 43.5 x 87 x 35 | ||||

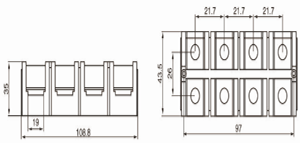

| TB1004 |  |
 |
2.5 – 16.0 | 600V | 4 | 43.5 x 108.8 x 35 | ||||
| TB1006 |  |
 |
2.5 – 16.0 | 600V | 6 | 43.5 x 108.5 x 21 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|

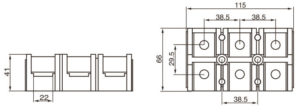

| TC1503 |  |
 |
60.0 | 600V | 3 | 66 x 115 x 41 | ||||

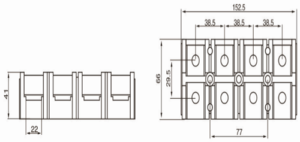

| TC1504 |  |
 |
60.0 | 600V | 4 | 66 x 152.5 x 41 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
| Model | Product Image | Product Dimension | Applicable Wire Size (mm2) | Rated Voltage | No. of Poles | Product Dimension W x L x H (mm) |
||||
|---|---|---|---|---|---|---|---|---|---|---|

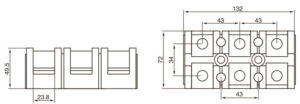

| TC2003 |  |
 |
100.0 | 600V | 3 | 72 x 132 x 49.5 | ||||

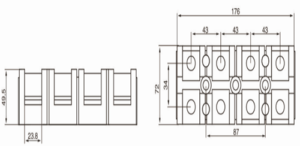

| TC2004 |  |
 |
100.0 | 600V | 4 | 72 x 176 x 49.5 | ||||
*Product Specifications Subject To Changes Without Prior Notice.
