Home > Products > Fans

Fans

Back To Listing

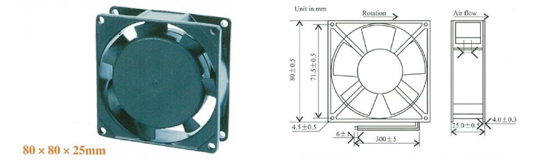

80 x 80 x 25

Size (mm)	Voltage	Power Consumption	Frequency	Air Flow
				Speed	CFM
80 x 80 x 25	110/115VAC	10/11W	50/60 Hz	2300 / 2700	26/33
80 x 80 x 25	220/230VAC	10/11W	50/60 Hz	2300 / 2700	26/33

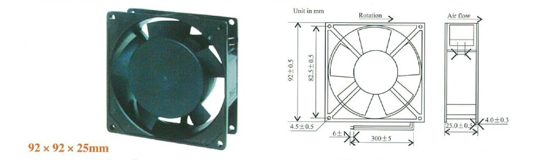

92 x 92 x 25

Size (mm)	Voltage	Power Consumption	Frequency	Air Flow
				Speed	CFM
92 x 92 x 25	110/115VAC	12/13W	50/60 Hz	2300 / 2700	33/40
92 x 92 x 25	220/230VAC	12/13W	50/60 Hz	2300 / 2700	33/40

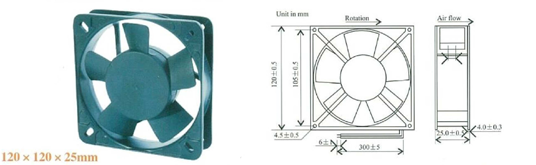

120 x 120 x 25

Size (mm)	Voltage	Power Consumption	Frequency	Air Flow
				Speed	CFM
120 x 120 x 25	110/115VAC	18/17W	50/60 Hz	2100 / 2500	64/77
120 x 120 x 25	220/230VAC	18/17W	50/60 Hz	2100 / 2500	64/77

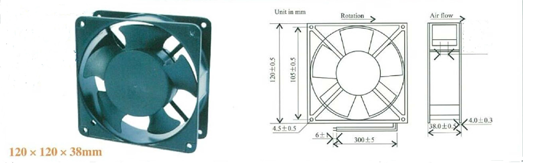

120 x 120 x 38

Size (mm)	Voltage	Power Consumption	Frequency	Air Flow
				Speed	CFM
120 x 120 x 38	24VDC	6.24W	50/60 Hz	2700	95
120 x 120 x 38	110/115VAC	20/19W		2600 / 3000	80/105
120 x 120 x 38	220/230VAC	20/19W		2600 / 3000	80/105

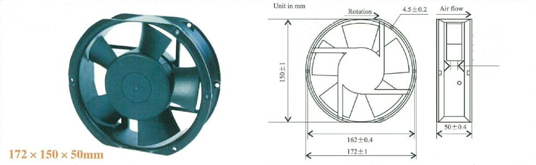

172 x 150 x 150

Size (mm)	Voltage	Power Consumption	Frequency	Air Flow
				Speed	CFM
172 x 150 x 50	115VAC	34W	50/60 Hz	2800	203
172 x 150 x 50	230VAC	34W	50/60 Hz	2800	203

*Product Specifications Subject To Changes Without Prior Notice.
