Terminal Lugs & Connectors

Back To Listing

Non-Insulated Fork Lug

Model	Dimensions							Wire Range
	d2	B	L	F	E	D	d	mm²	AWG
Y1-3S	3.7	5.7	16	6.5	4.8	4.5	1.7	0.5 - 1.5	22 - 16
Y1-4S	4.3	6.4	16	6.5
Y1-5S	5.3	8.1	16	6.5
Y1-6S	6.4	9.5	16	6.5
Y2-3S	3.7	5.7	16	6.5		5.1	2.3	1.5 - 2.5	16 - 14
Y2-4S	4.3	6.4	16	6.5
Y2-5S	5.3	8.1	16	6.5
Y2-6S	6.4	9.5	16	6.5
Y5-3S	3.7	8.3	19.5	7.5	6.8	5.6	3.4	4 - 6	12 - 10
Y5-4S	4.3	8.3	19.5	7.5
Y5-5S	5.3	9	19.5	7.5
Y5-6S	6.4	9	19.5	7.5

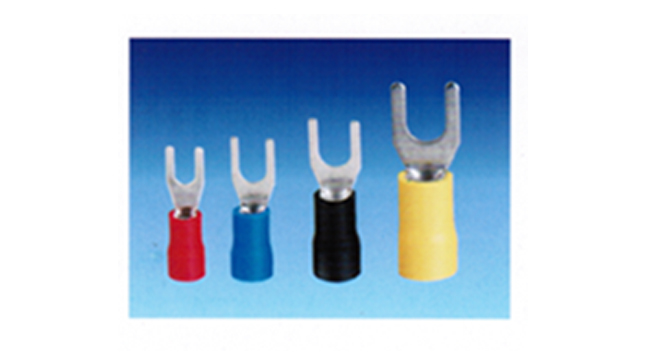

Insulated Fork Lug

Model	Dimensions (mm)						Wire Range		Colour
	d2	B	L	F	H	D	mm²	AWG
VY1-3S	3.7	5.7	21.2	6.5	10	4.3	0.5 - 1.5	22 - 16	Red
VY1-4S	4.3	6.4	21.2	6.5
VY1-5S	5.3	8.1	21.2	6.5
VY1-6S	6.4	9.5	21.2	6.5
VY2-3S	3.7	5.7	21.2	6.5		4.9	1.5 - 2.5	16 - 14	Blue
VY2-4S	4.3	6.4	21.2	6.5
VY2-5S	5.3	8.1	21.2	6.5
VY2-6S	6.4	9.5	21.2	6.5
VY5-3S	3.7	8.3	25.2	7.5	13	6.7	4 - 6	12 - 10	Yellow
VY5-4S	4.3	8.3	25.2	7.5
VY5-5S	5.3	9	25.2	7.5
VY5-6S	6.4	9	25.2	7.5

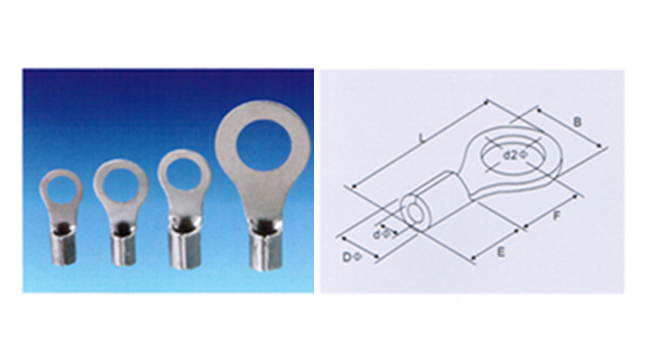

Non Insulated Ring Lug

Model	Dimensions (mm)							Wire Range
	d2	B	L	F	E	D	d	mm²	AWG
R1-3	3.7	5.7	12.6	4.95	4.8	3.4	1.7	0.5 - 1.5	22 - 16
R1-4	4.3	6.6	14.4	6.3
R1-5	5.3	8	15.8	7
R1-6	6.4	11.6	21.8	11.1
R1-8	8.4	11.6	21.8	11.1
R1-10	10.5	13.6	25.5	13.9
R2-3	3.7	6.6	12.3	4.3	4.8	4.1	2.3	1.5 - 2.5	16 - 14
R2-4	4.3	6.6	16	7
R2-5	5.3	8.5	16.8	7.75
R2-6	6.4	12	21.8	11
R2-8	8.4	12	21.8	11
R2-10	10.5	13.6	25.5	13.9
R2-12	13	19.2	31	16.5
R5-3	3.7	7.2	15.7	5.9	6.8	5.6	3.4	4 - 6	12 - 10
R5-4	4.3	7.2	15.7	5.9
R5-5	5.3	9.5	19.8	8.3
R5-6	6.4	12	25.8	13
R5-8	8.4	15	28	13.7

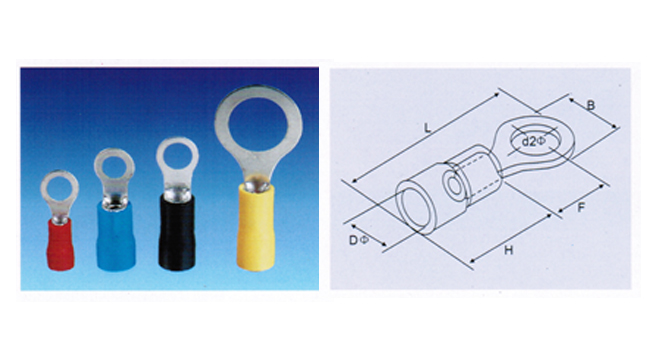

Insulated Ring Lug

Model	Dimensions (mm)						Wire Range		Colour
	d2	B	L	F	H	D	mm²	AWG
VR1-3	3.7	5.7	17.8	4.95	10	4.3	0.5 - 1.5	22 - 16	Red
VR1-4	4.3	6.6	20.1	6.3
VR1-5	5.3	8	21.5	7
VR1-6	6.4	11.6	27.5	11.1
VR1-8	8.4	11.6	27.5	11.1
VR1-10	10.5	13.6	31.6	13.9
VR2-3	3.7	6.6	17.8	4.3		4.9	1.5 - 2.5	16 - 14	Blue
VR2-4	4.3	8.5	21	7
VR2-5	5.3	8.5	22.5	7.75
VR2-6	6.4	12	27.6	11
VR2-8	8.4	12	27.6	11
VR2-10	10.5	13.6	30.2	13.9
VR2-12	13	19.2	35.4	16.5
VR5-4	4.3	7.2	21.4	5.9	13	6.7	4 - 6	12 - 10	Yellow
VR5-5	5.3	9.5	25.5	8.3
VR5-6	6.4	12	31.5	13
VR5-8	8.4	15	33.7	13.7
VR5-10	10.5	15	33.7	13.7
VR5-12	13	19.2	38.1	16

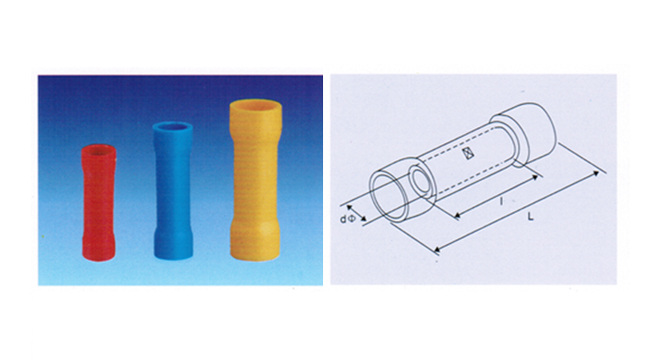

Insulated Cable Link

Model	Dimensions (mm)			Wire Range		Colour
	I	d	L	mm²	AWG
VBC-1	15	1.7	26	0.5 - 1.5	22 - 16	Red
VBC-2	15	2.3	26	1.5 - 2.5	16 - 14	Blue
VBC-5	15	3.4	26	4 - 6	12 - 10	Yellow

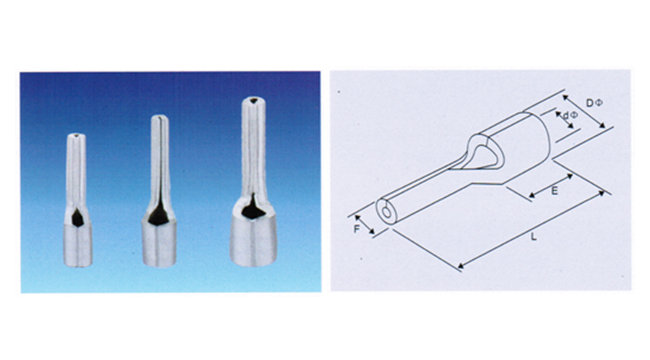

Non-Insulated Pin Terminal

Model	Dimensions (mm)					Wire Range
	W	L	E	D	d	mm ²	AWG
PT-1	1.9	16.8	4.8	3.4	1.7	0.5 - 1.5	22 - 16
PT-2	1.9	16.8	4.8	4.1	2.3	1.5 - 2.5	16 - 14
PT-5	2.8	19.8	6	5.6	3.4	4 - 6	12 - 10

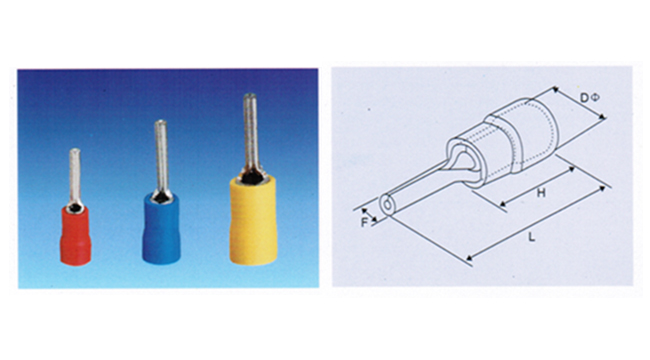

Insulated Pin Terminal

Model	Dimensions (mm)				Wire Range		Colour
	F	L	H	D	mm²	AWG
VPT-1	1.9	22	10	4.3	0.5 - 1.5	22 - 16	Red
VPT-2	1.9	22	10	4.9	1.5 - 2.5	16 - 14	Blue
VPT-5	2.8	25.5	13	6.7	4 - 6	12 - 10	Yellow

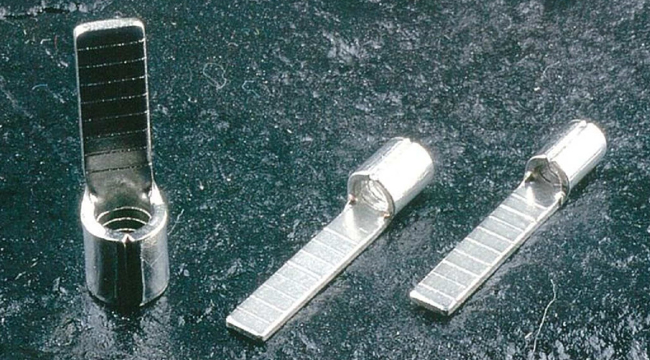

Non-Insulated Blade Terminal

Model	Dimensions (mm)						Wire Range
	B	L	F	E	D	d	mm²	AWG
BL 1-10	2.3	14.8	10	4.8	3.4	1.7	0.5 - 1.5	22 - 16
BL 1-18	2.3	22.8	18	4.8	3.4	1.7	0.5 - 1.5	22 - 16
BL 2-14	2.3	18.8	14	4.8	4.1	2.3	1.5 - 2.5	16 - 14
BL 2-18	2.3	22.8	18	4.8	4.1	2.3	1.5 - 2.5	16 - 14
BL 5-18	4.5	23	18	6	5.6	3.4	4 - 6	12-10

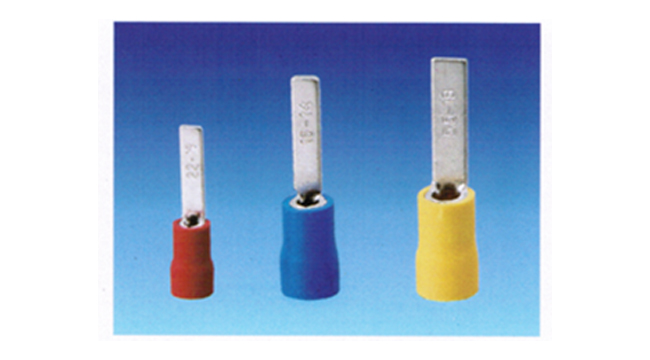

Insulated Blade Terminal

Model	Dimensions (mm)					Wire Range		Colour
	B	L	F	H	D	mm²	AWG
VBL 1-18	2.3	28	18	10	4.3	0.5 - 1.5	22 - 16	Red
VBL 2-18	2.3	28	18	10	4.9	1.5 - 2.5	16 - 14	Blue
VBL 5-18	4.5	30.5	18	13	5.6	4 - 6	12 - 10	Yellow

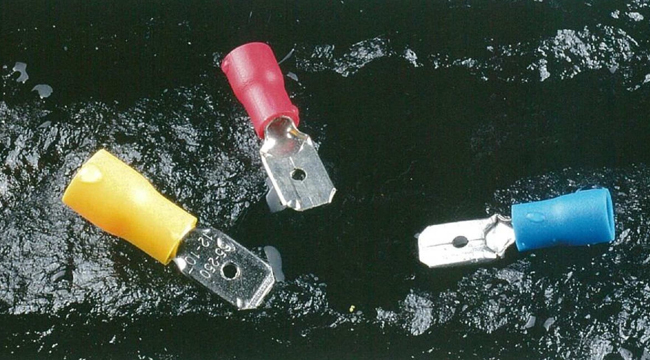

Half-Insulated Male Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
VD1-4.8M	4.75	1.7	4.3	20	10	0.5 - 1.5	22 - 16	Red
VD1-6.3M	6.35	1.7	4.3	21	10	0.5 - 1.5	22 - 16	Red
VD2-4.8M	4.75	2.3	4.3	29	10	1.5 - 2.5	16 - 14	Blue
VD2-6.3M	6.35	2.3	4.3	21	10	1.5 - 2.5	16 - 14	Blue
VD5-6.3M	6.35	3.4	5.7	25	13	4 - 6	12 - 10	Yellow

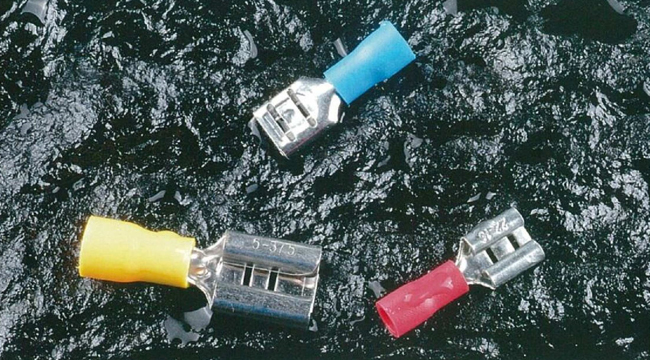

Half-Insulated Female Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
VD1-2.8F	3.8	3.8	1.7	19	10	0.5 - 1.5	22 - 16	Red
VD1-4.8F	5.6	3.8	1.7	19	10
VD1-6.3F	7.4	3.8	1.7	21	10
VD2-2.8F	3.8	4.3	2.3	19	10	1.5 - 2.5	16 - 14	Blue
VD2-4.8F	5.6	4.3	2.3	19	10
VD2-6.3F	7.4	4.3	2.3	21	10
VD5-6.3F	7.4	5.7	3.4	25	13	4 - 6	12 - 10	Yellow

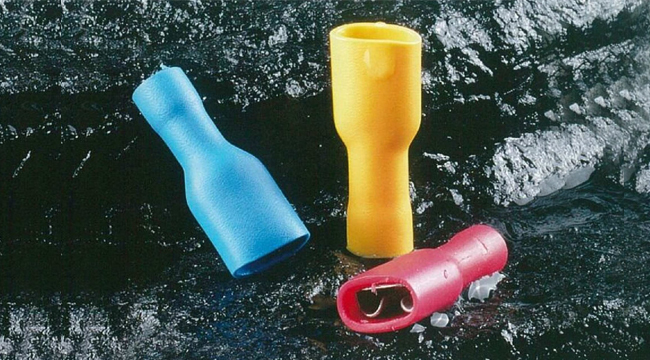

Fully-Insulated Female Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
LVD1-2.8F	3.8	3.8	1.7	19	10	0.5 - 1.5	22 - 16	Red
LVD1-4.8F	5.6	3.8	1.7	19	10
LVD1-6.3F	7.4	3.8	1.7	21	10
LVD2-2.8F	3.8	4.3	2.3	19	10	1.5 - 2.5	16 - 14	Blue
LVD2-4.8F	5.6	4.3	2.3	19	10
LVD2-6.3F	7.4	4.3	2.3	21	10
LVD5-6.3F	7.4	5.7	3.4	25	13	4 - 6	12 - 10	Yellow

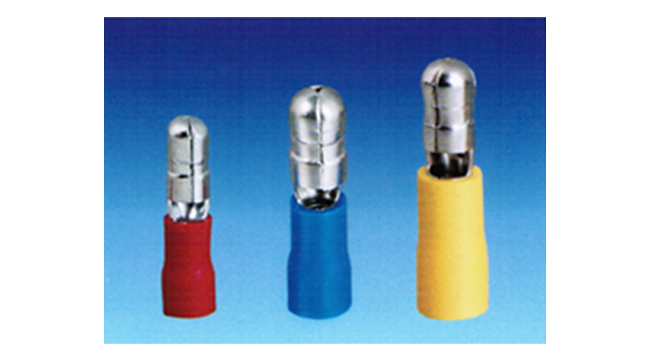

Half-Insulated Male Bullet

Model	Dimensions (mm)						Wire Range		Colour
	W	F	C	B	L	D	mm²	AWG
VG1-4M	4	11	1.7	10	21	2.7	0.5 - 1.5	22 - 16	Red
VG2-4M	4	11	2.3	10	21	3.3	1.5 - 2.5	16 - 14	Blue
VG5-4M	5	12	3.4	13	25	4.5	4 - 6	12 - 10	Yellow

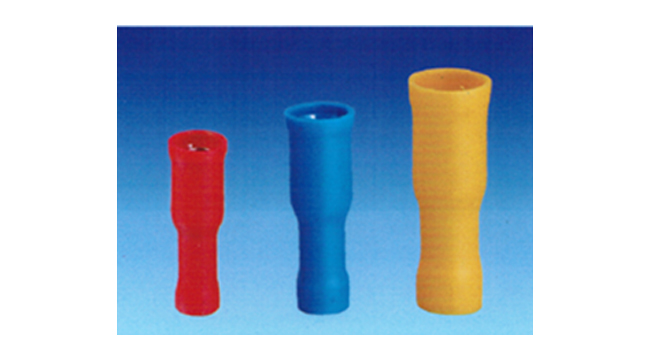

Fully-Insulated Female Bullet Receptacle

Model	Dimensions (mm)						Wire Range		Colour
	W	F	C	B	L	D	mm²	AWG
LVG1-4M	4	6.3	1.7	13	24.5	2.7	0.5 - 1.5	22 - 16	Red
LVG2-4M	4	6.3	2.3	14	24.5	3.3	1.5 - 2.5	16 - 14	Blue
LVG5-4M	5	7	3.4	14	29.5	4.5	4 - 6	12 - 10	Yellow
