Home > Products > Hazemeyer Plug & Socket

Hazemeyer Plug & Socket

Back To Listing

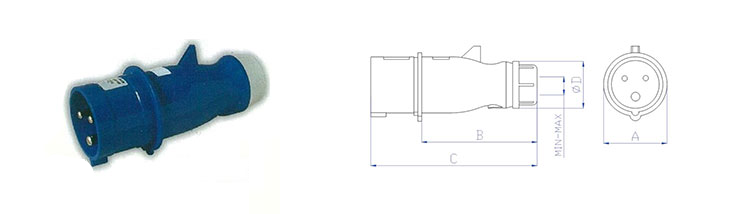

IP44 Plug

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	MIN	MAX
0130104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	51	89	129	32	8	16
0130106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	51	89	129	32	8	16
0140106	4P (3P + E)	16A	380-415V	50/60Hz	Red	57.5	89	129	33	8	16
0150106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	65	106	146	33	8	16

0230106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	68	110	159	38.5	12	22
0240106	4P (3P + E)	32A	380-415V	50/60Hz	Red	68	110	159	38.5	12	22
0250106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	74.5	120	159	38.5	12	22

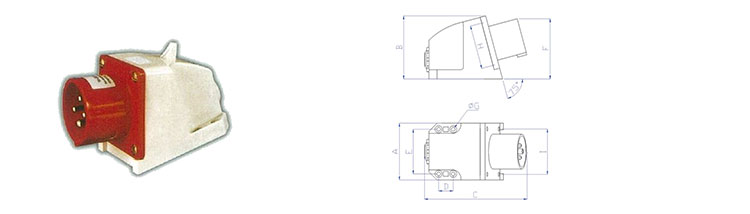

IP44 Surface Plug

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I
0130604	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	78	132	18	55	75	5.5	56	56
0136106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	78	132	18	55	75	5.5	56	56
0146106	4P (3P + E)	16A	380-415V	50/60Hz	Red	70	78	132	18	55	78	5.5	56	56
0156106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	70	78	132	18	55	71	5.5	56	56

0236106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	80	90	152	20	65	90	5.5	64	64
0246106	4P (3P + E)	32A	380-415V	50/60Hz	Red	80	90	152	20	65	90	5.5	64	64
0256106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	80	90	152	20	65	93	5.5	64	64

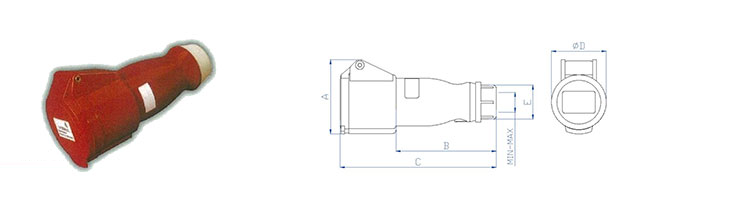

IP44 Mobile Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	MIN	MAX
1132104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	92	142	51	32	7.5	16
1132106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	92	142	51	32	7.5	16
1142106	4P (3P + E)	16A	380-415V	50/60Hz	Red	76	92	142	57.5	32	7.5	16
1152106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	83	105	157	65	32	7.5	16

1232106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	87	110	171	66	39	11	22
1242106	4P (3P + E)	32A	380-415V	50/60Hz	Red	87	110	171	66	39	11	22
1252106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	93	118	178	72.5	39	11	22

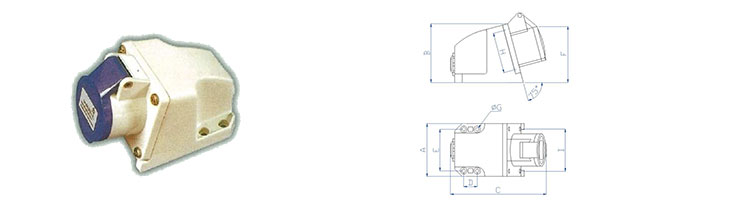

IP44 Surface Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I
1131104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	80	129	18	55	86	5.5	56	56
1131106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	80	129	18	55	86	5.5	56	56
1141106	4P (3P + E)	16A	380-415V	50/60Hz	Red	70	80	130	18	55	89	5.5	56	56
1151106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	70	80	131	18	55	92	5.5	56	56

1231106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	80	90	146	20	65	101	5.5	64	64
1241106	4P (3P + E)	32A	380-415V	50/60Hz	Red	80	90	146	20	65	101	5.5	64	64
1251106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	80	90	146	20	65	105	5.5	64	64

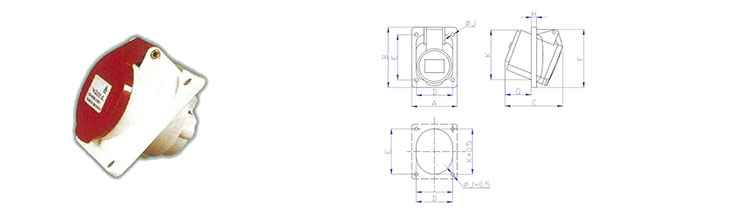

IP44 Panel Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I	J	K
1134104	3P(2P+E)	16A	100-130V	50/60Hz	Yellow	70	84	75	56	70	78	34.5	7	50	5.5	60
1134106	3P(2P+E)	16A	200-250V	50/60Hz	Blue	70	84	75	56	70	78	34.5	7	50	5.5	60
1144106	4P(3P+E)	16A	380-415V	50/60Hz	Red	70	84	76	56	70	85	33.5	7	56	5.5	70
1154106	5P(3P+N+E)	16A	380-415V	50/60Hz	Red	70	84	80	56	70	87	35	7	62	5.5	72

1234106	3P(2P+E)	32A	200-250V	50/60Hz	Blue	74	86	95	58	70	91	38	8	65	5.5	75
1244106	4P(3P+E)	32A	380-415V	50/60Hz	Red	74	86	95	58	70	91	38	8	65	5.5	75
1254106	5P(3P+N+E)	32A	380-415V	50/60Hz	Red	80	94	98	64	78	97	41	8	71	5.5	82

*Product Specifications Subject To Changes Without Prior Notice
