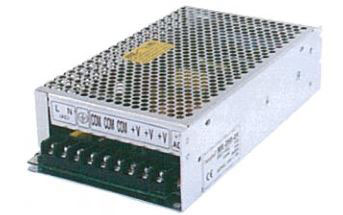

Toyogiken MS Series

24 V DC
12 V DC

OUTPUT DC Voltage – 24 V

Model		MS 35-24	MS 60-24	MS 75-24	MS 120-24	MS 150-24	MS 250-24
OUTPUT	DC Voltage	24VDC
	Rated Current	1.5A	2.5A	3.13A	5.0A	6.5A	10A
	Rated Power	35W	60W	75W	120W	150W	250W
	Wave & Noise	100mVp-p
	DC Voltage Adjustable Range	+/- 10%
	Inlet Stability	+/- 0.5%			+/- 0.2%		+/- 0.3%
	Load Stability	+/- 0.5%			+/- 0.2%		+/- 0.3%
	Setup / Rise / Hold Up Time	200ms 100ms 30ms					200ms 50ms 20ms
INPUT	AC Voltage Range	85-264VAC 240-370VDC			85-132VAC/170-264VAC 240-370VDC		176-264VAC 240-370VDC
	Frequency Range	47 - 63Hz
	Efficiency	0.87			0.84		0.85
	AC In-rush Current	Cold start 15A/115VAC 30A/230VAC			Cold start 25A/115VAC 50A/230VAC		Cold start 30A/115VAC 60A/230VAC
PROTECTION	Overload	105% - 150% hiccup mode, auto-recovery			105%-130% hiccup mode, auto-recovery
PROTECTION	Over Voltage	115% - 135%					105% - 135%
OTHERS	Working temperature and Humidity	-10°C to +60°C, 20% - 90% RH
	Dimensions (mm)	85 x 58 x 38	110 x 78 x 35		159 x 98 x 38		199 x 110 x 50
	Weight (kg)	0.25	0.35		0.72		1

OUTPUT DC Voltage – 12 V

Model		MS 35-12	MS 60-12	MS 75-12	MS 120-12	MS 150-12	MS 250-12
OUTPUT	DC Voltage	12VDC
	Rated Current	3A	5A	6.25A	10A	12.5A	20A
	Rated Power	35W	60W	75W	120W	150W	250W
	Wave & Noise	50mVp-p					75mVp-p
	DC Voltage Adjustable Range
	Inlet Stability	+/- 0.5%			+/- 0.3%
	Load Stability	+/- 0.5%			+/- 0.3%
	Setup / Rise / Hold Up Time	200ms 100ms 30ms					200ms 50ms 20ms
INPUT	AC Voltage Range	85-264VAC 240-370VDC			85 - 132VAC/170-264VAC 240-370VDC		176-264VAC 240-370VDC
	Frequency Range
	Efficiency	0.84			0.82
	AC In-rush Current	Cold start 15A/115VAC 30A/230VAC			Cold start 25A/115VAC 50A/230VAC		Cold start 30A/115VAC 60A/230VAC
PROTECTION	Overload	105% - 150% hiccup mode, auto-recovery			105%-130% hiccup mode, auto-recovery
PROTECTION	Over Voltage	115% - 135%					105% - 135%
OTHERS	Working temperature and Humidity
	Dimensions (mm)	85 x 58 x 38	110 x 78 x 35		159 x 98 x 38		199 x 110 x 50
	Weight (kg)	0.25	0.35		0.72		1

*Product Specifications Subject To Changes Without Prior Notice

Terminal Lugs & Connectors

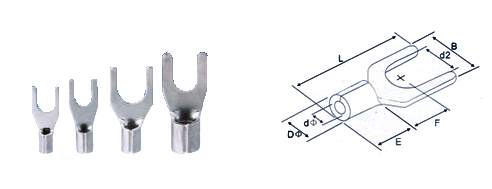

Non-Insulated Fork Lug

Model	Dimensions							Wire Range
	d2	B	L	F	E	D	d	mm²	AWG
Y1-3S	3.7	5.7	16	6.5	4.8	4.5	1.7	0.5 - 1.5	22 - 16
Y1-4S	4.3	6.4	16	6.5
Y1-5S	5.3	8.1	16	6.5
Y1-6S	6.4	9.5	16	6.5
Y2-3S	3.7	5.7	16	6.5		5.1	2.3	1.5 - 2.5	16 - 14
Y2-4S	4.3	6.4	16	6.5
Y2-5S	5.3	8.1	16	6.5
Y2-6S	6.4	9.5	16	6.5
Y5-3S	3.7	8.3	19.5	7.5	6.8	5.6	3.4	4 - 6	12 - 10
Y5-4S	4.3	8.3	19.5	7.5
Y5-5S	5.3	9	19.5	7.5
Y5-6S	6.4	9	19.5	7.5

Insulated Fork Lug

Model	Dimensions (mm)						Wire Range		Colour
	d2	B	L	F	H	D	mm²	AWG
VY1-3S	3.7	5.7	21.2	6.5	10	4.3	0.5 - 1.5	22 - 16	Red
VY1-4S	4.3	6.4	21.2	6.5
VY1-5S	5.3	8.1	21.2	6.5
VY1-6S	6.4	9.5	21.2	6.5
VY2-3S	3.7	5.7	21.2	6.5		4.9	1.5 - 2.5	16 - 14	Blue
VY2-4S	4.3	6.4	21.2	6.5
VY2-5S	5.3	8.1	21.2	6.5
VY2-6S	6.4	9.5	21.2	6.5
VY5-3S	3.7	8.3	25.2	7.5	13	6.7	4 - 6	12 - 10	Yellow
VY5-4S	4.3	8.3	25.2	7.5
VY5-5S	5.3	9	25.2	7.5
VY5-6S	6.4	9	25.2	7.5

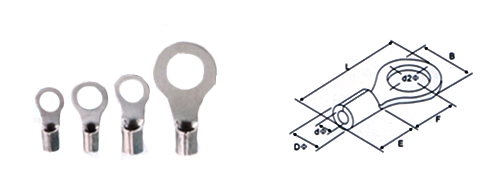

Non Insulated Ring Lug

Model	Dimensions (mm)							Wire Range
	d2	B	L	F	E	D	d	mm²	AWG
R1-3	3.7	5.7	12.6	4.95	4.8	3.4	1.7	0.5 - 1.5	22 - 16
R1-4	4.3	6.6	14.4	6.3
R1-5	5.3	8	15.8	7
R1-6	6.4	11.6	21.8	11.1
R1-8	8.4	11.6	21.8	11.1
R1-10	10.5	13.6	25.5	13.9
R2-3	3.7	6.6	12.3	4.3	4.8	4.1	2.3	1.5 - 2.5	16 - 14
R2-4	4.3	6.6	16	7
R2-5	5.3	8.5	16.8	7.75
R2-6	6.4	12	21.8	11
R2-8	8.4	12	21.8	11
R2-10	10.5	13.6	25.5	13.9
R2-12	13	19.2	31	16.5
R5-3	3.7	7.2	15.7	5.9	6.8	5.6	3.4	4 - 6	12 - 10
R5-4	4.3	7.2	15.7	5.9
R5-5	5.3	9.5	19.8	8.3
R5-6	6.4	12	25.8	13
R5-8	8.4	15	28	13.7

Insulated Ring Lug

Model	Dimensions (mm)						Wire Range		Colour
	d2	B	L	F	H	D	mm²	AWG
VR1-3	3.7	5.7	17.8	4.95	10	4.3	0.5 - 1.5	22 - 16	Red
VR1-4	4.3	6.6	20.1	6.3
VR1-5	5.3	8	21.5	7
VR1-6	6.4	11.6	27.5	11.1
VR1-8	8.4	11.6	27.5	11.1
VR1-10	10.5	13.6	31.6	13.9
VR2-3	3.7	6.6	17.8	4.3		4.9	1.5 - 2.5	16 - 14	Blue
VR2-4	4.3	8.5	21	7
VR2-5	5.3	8.5	22.5	7.75
VR2-6	6.4	12	27.6	11
VR2-8	8.4	12	27.6	11
VR2-10	10.5	13.6	30.2	13.9
VR2-12	13	19.2	35.4	16.5
VR5-4	4.3	7.2	21.4	5.9	13	6.7	4 - 6	12 - 10	Yellow
VR5-5	5.3	9.5	25.5	8.3
VR5-6	6.4	12	31.5	13
VR5-8	8.4	15	33.7	13.7
VR5-10	10.5	15	33.7	13.7
VR5-12	13	19.2	38.1	16

Insulated Cable Link

Model	Dimensions (mm)			Wire Range		Colour
	I	d	L	mm²	AWG
VBC-1	15	1.7	26	0.5 - 1.5	22 - 16	Red
VBC-2	15	2.3	26	1.5 - 2.5	16 - 14	Blue
VBC-5	15	3.4	26	4 - 6	12 - 10	Yellow

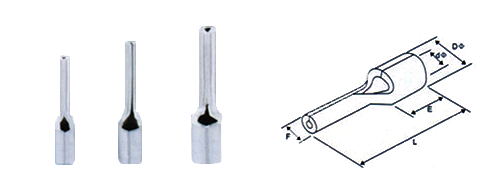

Non-Insulated Pin Terminal

Model	Dimensions (mm)					Wire Range
	W	L	E	D	d	mm ²	AWG
PT-1	1.9	16.8	4.8	3.4	1.7	0.5 - 1.5	22 - 16
PT-2	1.9	16.8	4.8	4.1	2.3	1.5 - 2.5	16 - 14
PT-5	2.8	19.8	6	5.6	3.4	4 - 6	12 - 10

Insulated Pin Terminal

Model	Dimensions (mm)				Wire Range		Colour
	F	L	H	D	mm²	AWG
VPT-1	1.9	22	10	4.3	0.5 - 1.5	22 - 16	Red
VPT-2	1.9	22	10	4.9	1.5 - 2.5	16 - 14	Blue
VPT-5	2.8	25.5	13	6.7	4 - 6	12 - 10	Yellow

Non-Insulated Blade Terminal

Model	Dimensions (mm)						Wire Range
	B	L	F	E	D	d	mm²	AWG
BL 1-10	2.3	14.8	10	4.8	3.4	1.7	0.5 - 1.5	22 - 16
BL 1-18	2.3	22.8	18	4.8	3.4	1.7	0.5 - 1.5	22 - 16
BL 2-14	2.3	18.8	14	4.8	4.1	2.3	1.5 - 2.5	16 - 14
BL 2-18	2.3	22.8	18	4.8	4.1	2.3	1.5 - 2.5	16 - 14
BL 5-18	4.5	23	18	6	5.6	3.4	4 - 6	12-10

Insulated Blade Terminal

Model	Dimensions (mm)					Wire Range		Colour
	B	L	F	H	D	mm²	AWG
VBL 1-18	2.3	28	18	10	4.3	0.5 - 1.5	22 - 16	Red
VBL 2-18	2.3	28	18	10	4.9	1.5 - 2.5	16 - 14	Blue
VBL 5-18	4.5	30.5	18	13	5.6	4 - 6	12 - 10	Yellow

Half-Insulated Male Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
VD1-4.8M	4.75	1.7	4.3	20	10	0.5 - 1.5	22 - 16	Red
VD1-6.3M	6.35	1.7	4.3	21	10	0.5 - 1.5	22 - 16	Red
VD2-4.8M	4.75	2.3	4.3	29	10	1.5 - 2.5	16 - 14	Blue
VD2-6.3M	6.35	2.3	4.3	21	10	1.5 - 2.5	16 - 14	Blue
VD5-6.3M	6.35	3.4	5.7	25	13	4 - 6	12 - 10	Yellow

Half-Insulated Female Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
VD1-2.8F	3.8	3.8	1.7	19	10	0.5 - 1.5	22 - 16	Red
VD1-4.8F	5.6	3.8	1.7	19	10
VD1-6.3F	7.4	3.8	1.7	21	10
VD2-2.8F	3.8	4.3	2.3	19	10	1.5 - 2.5	16 - 14	Blue
VD2-4.8F	5.6	4.3	2.3	19	10
VD2-6.3F	7.4	4.3	2.3	21	10
VD5-6.3F	7.4	5.7	3.4	25	13	4 - 6	12 - 10	Yellow

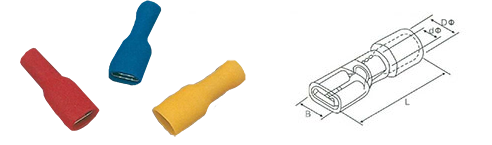

Fully-Insulated Female Disconnector

Model	Dimensions (mm)					Wire Range		Colour
	W	D	C	L	B	mm²	AWG
LVD1-2.8F	3.8	3.8	1.7	19	10	0.5 - 1.5	22 - 16	Red
LVD1-4.8F	5.6	3.8	1.7	19	10
LVD1-6.3F	7.4	3.8	1.7	21	10
LVD2-2.8F	3.8	4.3	2.3	19	10	1.5 - 2.5	16 - 14	Blue
LVD2-4.8F	5.6	4.3	2.3	19	10
LVD2-6.3F	7.4	4.3	2.3	21	10
LVD5-6.3F	7.4	5.7	3.4	25	13	4 - 6	12 - 10	Yellow

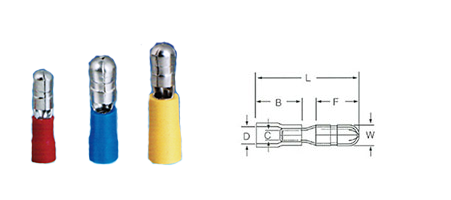

Half-Insulated Male Bullet

Model	Dimensions (mm)						Wire Range		Colour
	W	F	C	B	L	D	mm²	AWG
VG1-4M	4	11	1.7	10	21	2.7	0.5 - 1.5	22 - 16	Red
VG2-4M	4	11	2.3	10	21	3.3	1.5 - 2.5	16 - 14	Blue
VG5-4M	5	12	3.4	13	25	4.5	4 - 6	12 - 10	Yellow

Fully-Insulated Female Bullet Receptacle

Model	Dimensions (mm)						Wire Range		Colour
	W	F	C	B	L	D	mm²	AWG
LVG1-4M	4	6.3	1.7	13	24.5	2.7	0.5 - 1.5	22 - 16	Red
LVG2-4M	4	6.3	2.3	14	24.5	3.3	1.5 - 2.5	16 - 14	Blue
LVG5-4M	5	7	3.4	14	29.5	4.5	4 - 6	12 - 10	Yellow

*Product Specifications Subject To Changes Without Prior Notice.

Cord-end Terminals

Insulated Cord-End Terminals (Ferrules)

Model	Dimensions (mm)					Wire Range		Colour
	F	L	W	D	C	mm²	AWG	German	French
LT 07508	8	14.6	2.6	1.3	1	0.75	20	White	Blue
LT 10008	8	14.6	3	1.7	1.4	1.00	18	Yellow	Red
LT 15008	8	14.6	3.5	2	1.7	1.50	16	Red	Black
LT 25008	8	15.2	4	2.6	2.3	2.50	14	Blue	Grey
LT 25012	12	19.2	4	2.6	2.3	2.50	14	Blue	Grey
LT 25018	18	25.2	4	2.6	2.3	2.50	14	Blue	Grey
LT 40010	9	16.5	4.4	3.2	2.8	4.00	12	Grey	Orange
LT 60012	12	20	6.3	3.9	3.5	6.00	12	Black	Green
LT 100012	12	21.5	7.6	4.9	4.5	10.00	7	Ivory	Brown
LT 160012	12	22.2	8.8	6.2	5.8	16.00	5	Green	Ivory
LT 250016	16	29	11.2	7.9	7.5	25.00	4	Brown	Black

Insulated Twin Cord-End Terminals (Ferrules)

Model	Conductor (mm²)	Dimensions (mm)						Colour
		F	L	W	B	D	C
LT 15008 x 2	2 x 1.5	8	15.5	6.4	7.2	2.6	2.3	Black
LT 25013 x 2	2 x 2.5	13	21.5	8	8.5	3.3	2.9	Blue

Non-Insulated Cord-End Terminals (Ferrules)

Model	Dimensions (mm)				Wire Range
	L	D	C	W	mm²	AWG
LN 07508	8	1.6	1.3	1.9	0.75	20
LN 10008	8	1.8	1.5	2.2	1.00	18
LN 15008	8	2.1	1.8	2.5	1.50	16
LN 25010	10	2.6	2.3	3.3	2.50	14
LN 40012	12	3.2	2.8	3.9	4.00	12
LN 60012	12	3.9	3.5	4.8	6.00	10
LN 100012	12	4.9	4.5	5.8	10.00	7
LN 160012	12	6.2	5.8	7.2	16.00	5
LN 250016	16	7.9	7.5	9.1	25.00	4
LN 350018	18	8.7	8.3	10.2	35.00	2
LN 500022	22	10.9	10.3	12.4	50.00	1
LN 700025	25	13.9	13.3	15.8	70.00	-
LN 950025	25	15.5	15	16.6	95.00	-

SC Lugs & Links

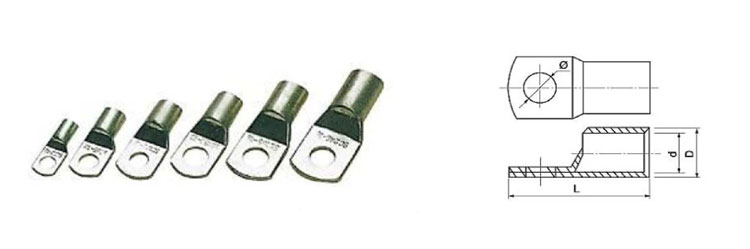

SC Cable lugs

Material: 99% pure copper tube T2, coated with Tin

Model	Ø (mm)	D (mm)	d (mm)	L
SC2.5-5	5.2	4	2.8	19
SC2.5-6	6.2	4	2.8	19
SC4-5	5.2	4.8	3.1	20.5
SC4-6	6.2	4.8	3.1	20.5
SC6-5	5.2	5.5	3.8	24
SC6-6	6.2	5.5	3.8	24
SC6-8	8.2	5.5	3.8	24
SC10-6	6.2	6.8	4.8	25
SC10-8	8.2	6.8	4.8	25
SC10-10	10.5	6.8	4.8	25
SC16-6	6.2	7.5	5.5	30
SC16-8	8.2	7.5	5.5	30
SC16-10	10.5	7.5	5.5	30
SC16-12	12.5	7.5	5.5	30
SC25-6	6.2	9	7	33
SC25-8	8.2	9	7	33
SC25-10	10.5	9	7	33
SC25-12	12.5	9	7	33
SC35-6	6.2	10.5	8.3	38
SC35-8	8.2	10.5	8.3	38
SC35-10	10.5	10.5	8.3	38
SC35-12	12.5	10.5	8.3	38
SC50-8	8.2	12.5	9.8	45
SC50-10	10.5	12.5	9.8	45
SC50-12	12.5	12.5	9.8	45
SC70-8	8.2	14.5	11.5	49
SC70-10	10.5	14.5	11.5	49
SC70-12	12.5	14.5	11.5	49
SC70-16	16.5	14.5	11.5	49
SC95-8	8.2	17.5	13.8	54
SC95-10	10.5	17.5	13.8	54
SC95-12	12.5	17.5	13.8	54
SC95-16	16.5	17.5	13.8	54
SC120-8	8.2	19.5	15.5	62
SC120-10	10.5	19.5	15.5	62
SC120-12	12.5	19.5	15.5	62
SC120-16	16.5	19.5	15.5	62
SC150-8	8.2	21	16.5	68
SC150-10	10.5	21	16.5	68
SC150-12	12.5	21	16.5	68
SC150-16	16.5	21	16.5	68
SC185-10	10.5	23.5	18.8	76
SC185-12	12.5	23.5	18.8	76
SC185-16	16.5	23.5	18.8	76
SC240-12	12.5	26	21	90
SC240-16	16.5	26	21	90
SC300-12	12.5	30	24	100
SC300-16	16.5	30	24	100
SC300-20	20.5	30	24	100

Cable link

Material: 99% pure copper tube T2, coated with Tin

Model	D (mm)	d (mm)	L
6mm	6	3.8	25
10mm	6.8	4.8	30
16mm	7.5	5.5	35
25mm	9	7	40
35mm	10.5	8.1	45
50mm	12.5	9.8	50
70mm	14.5	11.5	55
95mm	17.5	13.5	60
120mm	19.5	15.5	65
150mm	21	16.5	70
185mm	23.5	18.5	75
240mm	26.5	21	80

*Product Specifications Subject To Changes Without Prior Notice

Cable Glands

Material: Nylon
Gasket: Nitrile Rubber
Protection Grade: IP68
Color: Grey

PG Cable Gland

Model	Ø (mm)	GL (mm)	H (mm)	AG (mm)
PG-7	3-6.5	8	22	12
PG-9	4-8	8	26	16
PG-11	5-10	8	27	18
PG-13.5	6-12	9	28	20
PG-16	10-14	10	30	22
PG-21	13-18	10	35	28
PG-25	16-21	11	34	30
PG-29	18-25	12	40	37
PG-36	22-32	14	48	47
PG-42	32-38	14	49	54
PG-48	37-44	14	50	59

M Cable Gland

Model	Ø (mm)	GL (mm)	H (mm)	AG (mm)
M12	3-6.5	8	22	12
M16	4-8	8	26	16
M20	6-12	9	28	20
M25	13-18	10	35	25
M32	12-21	11	34	32

*Product Specifications Subject To Changes Without Prior Notice

Flexible Hoses & Connectors

Demex EF – Liquid Tight Flexible Hoses

Material: Galvanized Steel Core with PVC Outer Insulation, Interlock type
Description: Oil-resistant, Corrosion resistant, Water-resistant
PVC Colour: Black

Size	Inner Diameter (mm)		Outer Diameter (mm)		Bending Radius (mm)	Length/Roll
	Min	Max	Min	Max		(meters)
3/8"	12.3	12.8	17.5	18	60	30
1/2"	15.8	16.3	20.8	21.3	85	30
3/4"	20.7	21.2	26.3	26.7	100	30
1"	26.2	26.8	32.7	33.4	150	20
1-1/4"	34.8	35.4	41.4	42.2	180	20
1-1/2"	40.1	40.6	47.4	48.3	220	20
2"	51.3	51.9	59.4	60.3	250	10

Demex PVC Corrugated Flexible Hoses

Material: Galvanized Steel Core with PVC Outer Insulation
Description: Corrosion resistant, Water-resistant, High Flexibility
PVC Colour: Black

Size	Inner Diameter (mm)		Outer Diameter (mm)		Bending Radius (mm)	Length/Roll
	Min	Max	Min	Max		(meters)
3/8"	12.3	12.8	16.7	17.2	50	50
1/2"	15.8	16.3	20.2	20.7	65	50
3/4"	20.7	21.2	25.5	26.1	75	50
1"	26	26.6	31.6	32.2	100	30
1-1/4"	34.7	35.4	40.8	41.5	125	25
1-1/2"	40	40.6	46.6	47.2	150	25
2"	51.3	51.9	58.1	58.7	175	15
2-1/2"	63	63.6	71.8	72.4	200	15
3"	78	78.7	87.2	87.9	225	10
4"	101.6	102.6	111.2	111.3	275	10

Connectors

45 Degree Angle Connector

Size	d (mm)	A (mm)	B (mm)	C (mm)
3/8"	11.5	19	29	11.5
1/2"	14	21	32	11.5
3/4"	19	27	40	15
1"	25	30	46	16
1-1/4"	32.5	35	57	17
1-1/2"	38	40	65	18
2"	49	46	79	20
2-1/2"	61.5	61	97	26
3"	74.5	70	114.5	28
4"	96.5	81	142.5	32

90 Degree Angle Connector

Size	d (mm)	A (mm)	B (mm)	C (mm)
3/8"	11.5	19	29	11.5
1/2"	14	21	32	11.5
3/4"	19	27	40	15
1"	25	30	46	16
1-1/4"	32.5	35	57	17
1-1/2"	38	40	65	18
2"	49	46	79	20
2-1/2"	61.5	61	97	26
3"	74.5	70	114.5	28
4"	96.5	81	142.5	32

Straight Connector

Size	d (mm)	A (mm)	B (mm)	C (mm)
3/8"	11.5	34	29	15
1/2"	14	38	32	16
3/4"	19	40	40	18
1"	25	45	46	22
1-1/4"	32.5	52	57	22
1-1/2"	38	56	65	24
2"	49	61	79	24
2-1/2"	61.5	69	97	23.5
3"	74.5	74	114.5	26
4"	96.5	88	142.5	30

*Product Specifications Subject To Changes Without Prior Notice.

Spiral Wraps

Material: PE
Colour: White or Black

Model	D (mm)	d (mm)	W (mm)	Wrapping Range (mm)	Std Packing
SWB-4	4	6	7	4-50	10M / Pkt
SWB-6	6	8	10.8	6-60
SWB-8	7.5	10	11.4	7.5-60
SWB-9	9	12	13.9	9-65
SWB-12	12	15	15	12-75
SWB-15	15	19	18.2	15-100
SWB-20	20	24	19.6	20-130

*Product Specifications Subject To Changes Without Prior Notice

Hazemeyer Plug & Socket

IP44 Plug

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	MIN	MAX
0130104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	51	89	129	32	8	16
0130106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	51	89	129	32	8	16
0140106	4P (3P + E)	16A	380-415V	50/60Hz	Red	57.5	89	129	33	8	16
0150106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	65	106	146	33	8	16

0230106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	68	110	159	38.5	12	22
0240106	4P (3P + E)	32A	380-415V	50/60Hz	Red	68	110	159	38.5	12	22
0250106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	74.5	120	159	38.5	12	22

IP44 Surface Plug

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I
0130604	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	78	132	18	55	75	5.5	56	56
0136106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	78	132	18	55	75	5.5	56	56
0146106	4P (3P + E)	16A	380-415V	50/60Hz	Red	70	78	132	18	55	78	5.5	56	56
0156106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	70	78	132	18	55	71	5.5	56	56

0236106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	80	90	152	20	65	90	5.5	64	64
0246106	4P (3P + E)	32A	380-415V	50/60Hz	Red	80	90	152	20	65	90	5.5	64	64
0256106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	80	90	152	20	65	93	5.5	64	64

IP44 Mobile Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	MIN	MAX
1132104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	92	142	51	32	7.5	16
1132106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	92	142	51	32	7.5	16
1142106	4P (3P + E)	16A	380-415V	50/60Hz	Red	76	92	142	57.5	32	7.5	16
1152106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	83	105	157	65	32	7.5	16

1232106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	87	110	171	66	39	11	22
1242106	4P (3P + E)	32A	380-415V	50/60Hz	Red	87	110	171	66	39	11	22
1252106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	93	118	178	72.5	39	11	22

IP44 Surface Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I
1131104	3P (2P + E)	16A	100-130V	50/60Hz	Yellow	70	80	129	18	55	86	5.5	56	56
1131106	3P (2P + E)	16A	200-250V	50/60Hz	Blue	70	80	129	18	55	86	5.5	56	56
1141106	4P (3P + E)	16A	380-415V	50/60Hz	Red	70	80	130	18	55	89	5.5	56	56
1151106	5P (3P + N + E)	16A	380-415V	50/60Hz	Red	70	80	131	18	55	92	5.5	56	56

1231106	3P (2P + E)	32A	200-250V	50/60Hz	Blue	80	90	146	20	65	101	5.5	64	64
1241106	4P (3P + E)	32A	380-415V	50/60Hz	Red	80	90	146	20	65	101	5.5	64	64
1251106	5P (3P + N + E)	32A	380-415V	50/60Hz	Red	80	90	146	20	65	105	5.5	64	64

IP44 Panel Socket

Model	No. of Pins	Ampere	Voltage	Frequency	Colour	DIMENSIONS (MM)
						A	B	C	D	E	F	G	H	I	J	K
1134104	3P(2P+E)	16A	100-130V	50/60Hz	Yellow	70	84	75	56	70	78	34.5	7	50	5.5	60
1134106	3P(2P+E)	16A	200-250V	50/60Hz	Blue	70	84	75	56	70	78	34.5	7	50	5.5	60
1144106	4P(3P+E)	16A	380-415V	50/60Hz	Red	70	84	76	56	70	85	33.5	7	56	5.5	70
1154106	5P(3P+N+E)	16A	380-415V	50/60Hz	Red	70	84	80	56	70	87	35	7	62	5.5	72

1234106	3P(2P+E)	32A	200-250V	50/60Hz	Blue	74	86	95	58	70	91	38	8	65	5.5	75
1244106	4P(3P+E)	32A	380-415V	50/60Hz	Red	74	86	95	58	70	91	38	8	65	5.5	75
1254106	5P(3P+N+E)	32A	380-415V	50/60Hz	Red	80	94	98	64	78	97	41	8	71	5.5	82

*Product Specifications Subject To Changes Without Prior Notice

PVC Slotted Trunking

Brand: Demex
Material: Manufactured from rigid PVC
Colour: Grey
Product Approvals: UL94V0, RoHS, CE
Working Temperature Range: -40°C to +65°C
Length: 2M/length, Complete with Cover

Model	W x H (mm)	Slot Width (Q) (mm)	Finger Width (P) (mm)	Qty/Carton
DM 25 x 25F	25 x 25	4	6	100
DM 35 x 35F	35 x 35	4	6	50
DM 25 x 45F	25 x 45	4	6	50
DM 33 x 45F	33 x 45	4	6	52
DM 45 x 45F	45 x 45	4	6	36
DM 65 x 45F	65 x 45	4	6	25
DM 25 x 65F	25 x 65	4	6	44
DM 33 x 65F	33 x 65	4	6	40
DM 45 x 65F	45 x 65	4	6	30
DM 65 x 65F	65 x 65	4	6	20
DM 30 x 80F	30 x 80	4	6	28
DM 40 x 80F	40 x 80	4	6	24
DM 60 x 80F	60 x 80	4	6	16
DM 80 x 80F	80 x 80	4	6	12
DM 33 x 100F	33 x 100	4	6	22
DM 50 x 100F	50 x 100	4	6	20
DM 80 x 100F	80 x 100	4	6	12
DM 100 x 100F	100 x 100	4	6	12
DM 150 x 100F	150 x 100	4	6	8

DM 60 x 60L	60 x 60	8	12	24
DM 80 x 60L	80 x 60	8	12	18
DM 45 x 65L	45 x 65	8	12	30
DM 65 x 65L	65 x 65	8	12	20
DM 60 x 80L	60 x 80	8	12	16
DM 80 x 80L	80 x 80	8	12	12
DM 100 x 80L	100 x 80	8	12	12
DM 50 x 100L	50 x 100	8	12	20
DM 80 x 100L	80 x 100	8	12	12
DM 100 x 100L	100 x 100	8	12	12
DM 150 x 100L	150 x 100	8	12	8
